Specification check

heavy duty pallet rack shelving

Collect aisle, pit, dock height and utility constraints before a heavy duty pallet rack shelving substitute is accepted. This page is a buyer worksheet, not an ESG statement and not a factory survey report.

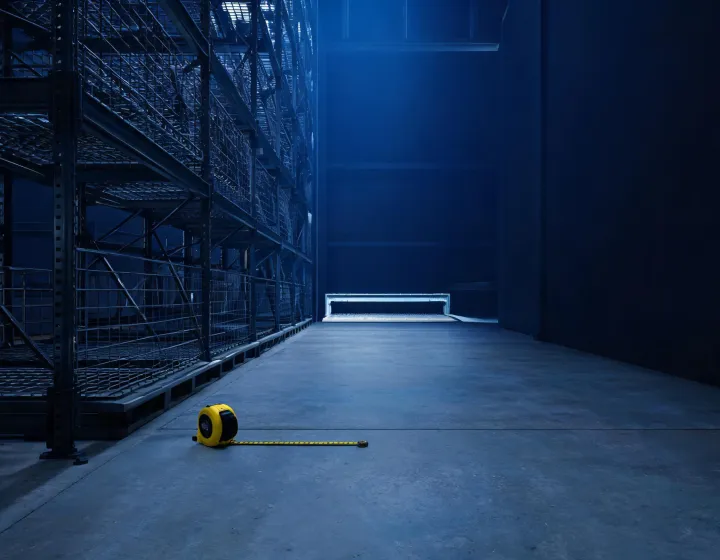

Tape measure across a pallet rack aisle and dock lip

Site notes in the order factories usually ask

  1. Aisle and travel

    Record aisle width, turning space and how a lift truck approaches the first bay. Pallet size and upright faces change whether a shelving bay can sit without blocking a cross-aisle.

  2. Pit and dock

    Write pit depth, dock height and any leveler lip. Those numbers decide first-beam elevation even when civil work stays excluded from the machine quote.

  3. Slab and seismic

    Slab thickness or allowable bearing and seismic design input belong here when the buyer later asks for an installed price. If they are unknown, mark them unknown instead of copying a catalog default.

  4. Utility only if powered

    Confirm voltage, phase and frequency only when the line includes AS/RS or powered accessories. A static shelving bay does not need a three-phase supply note.

Open choices that still change the quote

4 Geometry notes

Upright height, bay width, beam length and pallet size stay on one line so a substitute series cannot hide a shorter frame.

3 Surface options

Wire deck, particle board and open beam are buyer options. Rank them from duty and fire notes, not from a universal winner.

2 Scope splits

Equipment price and installed cost stay on different lines. Freight, anchors and commissioning are extras unless requested.

Reference pages, not this desk's files

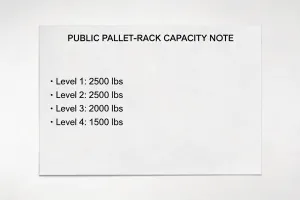

Public capacity note placeholder

Public capacity notes

Published figures that use pounds per pair and L/180 are reference information. They are not a promise from Heavy Duty Pallet Rack Sourcing.

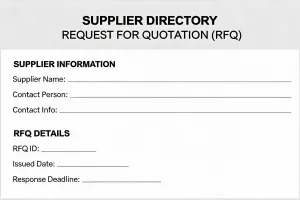

Directory RFQ pattern placeholder

Directory RFQ pattern

Thomas-style search, shortlist and RFQ with project notes is a public path. Opening that page is not a submitted RFQ from this desk.

How complete is the site note?

0 Audited plants claimed
0 Savings percentages published
7 Buyer fields before a match

Counters are worksheet reminders. They are not installation progress, carbon targets or audited factory scores. Use rack options after the site note is readable. The units article shows how to copy capacity and geometry names into the brief.

Request factory quotes

Share the heavy duty pallet rack shelving site notes with quantity and destination.
